UPVC Corner Welding Machine PVC Window Frame Double Head Welding Equipment

Shandong Care Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of UPVC Corner Welding Machine PVC Window Frame Double Head Welding Equipment in China. If you're going to buy customized UPVC Corner Welding Machine PVC Window Frame Double Head Welding Equipment, welcome to get more information from our factory. Quality products and reasonable price are available.





Shandong Care Machinery Technology Co., Ltd. is a domestic leading manufacturer of UPVC/PVC window and door processing equipment. It offers customized equipment and direct factory supply with high cost-effectiveness. The UPVC Corner Welding Machine is specifically designed for 90° heat fusion welding of PVC/UPVC/ plastic steel window frames and window sashes. It is the core processing equipment for plastic steel window factories.
Model coverage: The product line is complete, including single-head, double-head, triple-head, and quadruple-head models; it offers two processing versions: standard weld seam (about 2mm) and seamless welding. This page mainly promotes the double-head corner welding machine.





Item	Specification
Working Voltage	220V 50Hz
Total Power	2.5 KW
Working Air Pressure	0.5–0.8 MPa
Processing Range (W×H×L)	130×140×3500 mm
Overall Dimension (L×W×H)	4300×900×1650 mm



1. PLC Programmable Control System

Fully automatic control of all welding movements with stable operation and low failure rate. Independent digital temperature controller precisely maintains welding temperature to guarantee consistent welding quality.

2. Double-Layer Profile Clamping Structure

Upper and lower double compression design ensures high welding joint strength. Equipped with emergency stop and pressure relief device to improve overall operation safety.

3. Independently Adjustable Multi-Channel Pressure

Three independent pressure gauges separately control front clamping pressure, rear clamping pressure and feeding pressure. Effectively improve flatness of welding corners and reduce rework rate.

4. Flexible Working Mode of Welding Heads

Two welding heads can work separately or synchronously. Flexible to match different window sizes and meet mass production requirements of door & window workshops.

5. Custom Welding Support Jigs

We can produce special welding backing plates according to customers' UPVC profiles, compatible with mainstream 60 / 65 / 70 series profiles to achieve tight welding seams.

6. Mature Hot Melt Welding Technology

Standard model leaves 2mm welding seam. The seamless welding model realizes nearly invisible welding traces, satisfying production demands of high-end household PVC doors and windows.

The page supports complete real-shot pictures including whole machine, welding head, digital control panel, pneumatic control cabinet, drag chain and workshop assembly scene.

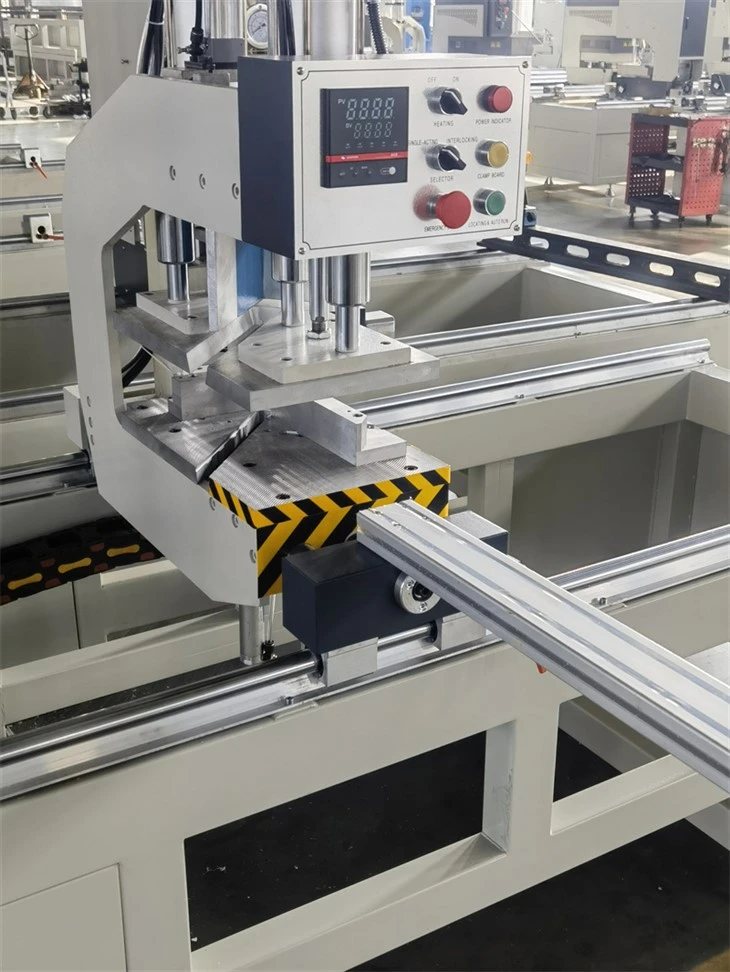

Digital temperature control panel with start, stop and pressure adjustment buttons

Aluminum alloy heating welding plate and double-layer clamping fixture

Three independent pneumatic pressure regulating valves & safety emergency stop switch

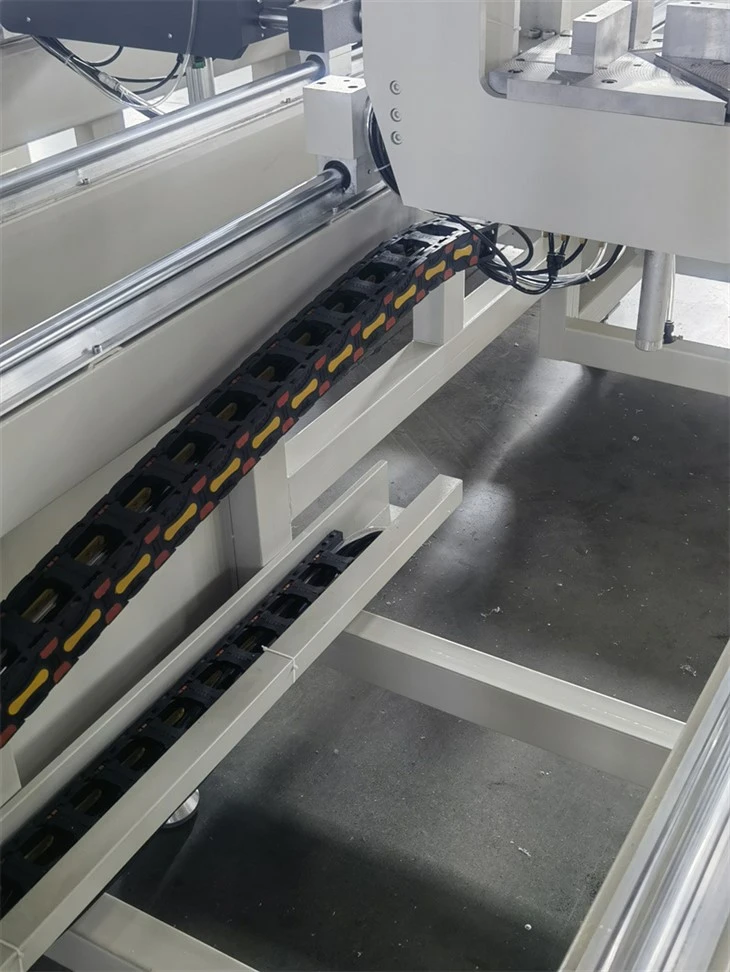

Closed wear-resistant cable drag chain to protect internal circuits





We have independent production workshops with standardized assembly and strict pre-delivery testing. All machines undergo inspection before shipment.





Q1: What welding types can you provide?

A: We supply standard seam welding machine and seamless welding machine for selection.



Q2: Can you customize fixtures for our special profiles?

A: Yes, we can customize welding backing plates according to your UPVC profile drawings or samples.



Q3: What is the warranty term?

A: 12-month whole machine warranty. We offer 24-hour online technical support and supply spare parts at cost after warranty expires.



Q4: What are the optional models?

A: Single head, double head, three head and four head UPVC welding machines are available.
