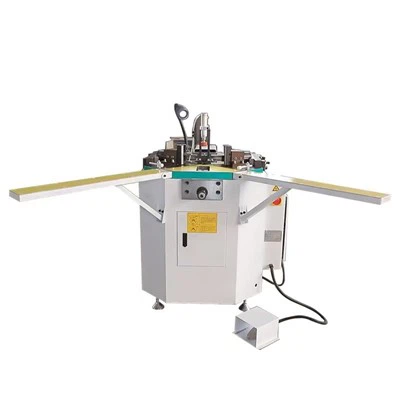

Corner Crimping Machine
Your Professional Corner Crimping Machine Supplier
Shandong Care Machinery Technology Co., Ltd. is a comprehensive enterprise, the main products include glass cutting machine, glass washing machine, insulating glass production line, glass edge grinding machine, glass milling and drilling machine, etc.
why choose us
Professional team
Our professional engineer team also provide right facility configuration, accordingly customers' various production requirements and estimated investment. And we'll provide essential industrial design and technical guidance as well.
Stringent Quality Control
We implement strict product quality testing processes, ensuring each product meets high standards, delivering exceptional performance.
Technical Support
Provide on-site installation, commissioning and training.Free accessories within one year.Provide remote service and video guidance.
After-Service
Our professional after-service team will provide you any support you need any time!
Corner Crimping Machine Specifications
|
Item |
Value |
|
Condition |
New |
|
Applicable Industries |
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Other |
|
Showroom Location |
None |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Marketing Type |
New Product 2023 |
|
Warranty of core components |
1 Year |
|
Core Components |
Pump, Engine, Motor |
|
Brand Name |
YBKE |
|
Voltage |
380V 50HZ |
|
Weight |
850kg |
|
Warranty |
1 Year |
|
Power |
2.2KW |
|
Applicable Material |
Aluminum |
|
Key Selling Points |
Easy to Operate |
|
Rated oil pump pressure |
18Mpa |
|
Air source working pressure |
0.5 ~ 0.8Mpa |
|
Tank capacity |
25L |
|
Total group angular pressure |
60KN |
|
Movement stroke of group Angle cylinder |
0-85mm |
|
Machining profile height max |
130mm |
●Applicable material:aluminum,thermal break profile.
●Used for assembling 90 degree corners.
●The tool magazine contains three groups of tools for selection,tool change is easy and fast.
●Synchronized left and right crimping,slightly adjustable for each crimping depth.
●Powerful hydraulic pump station.
●Bracket in large size for supporting large aluminum window or door frame.
●A pair of 3mm thick, 5mm thick and 8mm thick corner crimping tools come with the machine.
Applications
Construction
In the construction industry, a two corner crimping tool makes window frames, metal roofs, and structural reinforcements.
Automotive
The automotive industry uses a two corner crimping machine for different applications. It makes strong corner joints for various automotive components, such as chassis, body parts, brackets, and reinforcements.
Packaging
Packaging manufacturers use a two corner crimping machine to produce effective packaging products like boxes and cartons.
HVAC Systems
HVAC (heating, ventilation, and air conditioning) system manufacturers use a two corner crimping machine to make ductwork and vents.
Packing
1.For full container load, usually wrapped in stretch films.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixed or standard export plywood case.
Delivery
Small and few machines: In 5-10 days after receiving pre-payment.
Big or many machines: More than 25 days after receiving pre-payment.
