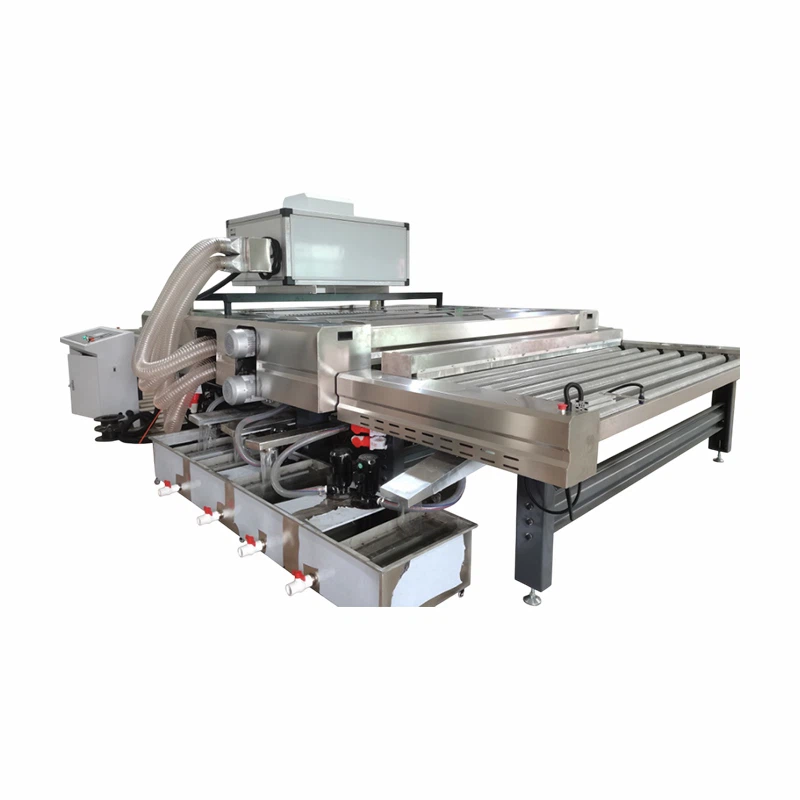

Glass Washing Machine
Shandong Care Machinery Technology Co., Ltd. is a comprehensive enterprise, the main products include glass cutting machine, glass washing machine, insulating glass production line, glass edge grinding machine, glass milling and drilling machine, etc.
Why choose us?
Quality control
We are quality conscious company, and it's just our origin to supply customers qualified machines. We are always trying to be the "Solution Expert of Window Glass Processing Machinery".
Professional team
We not only supply complete window glass processing machines, but our professional engineer team also provide right facility configuration, accordingly customers' various production requirements and estimated investment.
Comprehensive services
Shandong Care Machinery Technology Co., Ltd. is a comprehensive enterprise, specializing in manufacturing, sales, technical service and solution design of window glass processing machinery.
Diversified processes:
Glass washing machine is not only applied to the basic processing of glass, but also involves a variety of deep processing processes such as laminating, grinding, silk screen printing and so on.
Flexible configuration:
According to different cleaning requirements, a variety of cleaning processes can be configured to meet the needs of various cleanliness.
Wide applicability:
Suitable models and configurations can be found from small to large glass to meet the needs of different scale production.
Intelligent control:
Intelligent PLC programme control technology is adopted to simplify the operation process, so that even inexperienced operators can get started quickly.
Human-computer interface:
Friendly human-computer interface makes equipment setting and troubleshooting easier and more intuitive.
Product Specifications
|
Max. Glass Size |
2500mm |
|
Min. Glass Size |
400mm*400mm |
|
Glass Thickness |
3mm-25mm(digital display) |
|
Speed Range |
Vmax=1-10m/min(glass thickness within 3-25mm) |
|
Rubber Roller and Brush Roller Speed |
Adjusted by inverter |
|
Working Height |
900+/-25mm |
|
Total Power |
39KW |
|
Power Supply |
380V 50Hz |
|
Machine Dimension |
5500*3900*2540mm(L*W*H) |
|
Machine Weight |
3640KG |
Types of Glass Washing Machine
Vertical glass washing machine
Vertical glass washing machine is one of the types, which usually contains transmission system, brushing, fresh water rinsing, pure water rinsing, hot and cold air drying, electric control system and other parts. In medium and large-scale equipment, may also be equipped with manual (pneumatic) glass turning trolley and inspection light source and other systems. This type of washing machine is suitable for occasions that require long time continuous operation, which can greatly improve the working efficiency.
Horizontal glass washing machine
Horizontal glass washer has the opposite placing method to the vertical model, which is more suitable for cleaning glass with larger size and heavier weight. Its structural design ensures the stability of the glass during the cleaning process and reduces the risk of damage.
Brush cleaning type glass washing machine
When operating, the flat glass is put on the machine, and the glass is driven into the brushing chamber by the drive roller. In the brushing room, the brush with water spray is cleaned, and then it enters the rinsing room to be rinsed with pure water. Finally, it enters the air-drying room, where a special high-pressure blower is used to completely strip the water film to achieve a dry and clean cleaning effect.
Ultrasonic glass washing machine
Ultrasonic glass washing machine is mainly composed of cleaning tank, ultrasonic transducer and other components. In this kind of equipment, the cleaning tank holds the workpiece to be washed, usually made of stainless steel and installed with heating and temperature control devices. The ultrasonic transducer is bonded to the bottom of the tank to generate ultrasonic cleaning power.
Pre-sale service: Our foreign trade sales staff will provide detailed equipment parameters and plans according to the specific situation of customers.
Sales service: Sign a contract with the customer, clearly stipulate the rights and obligations of both parties, complete the production task in strict accordance with the customer's requirements with both quality and quantity guaranteed, and inform the customer of the accurate delivery date in advance.
After-sales service: Communicate with customers in advance about the site requirements and matters needing attention of the equipment. After the goods arrive, guide customers to install and use the equipment. For special equipment, technicians will be arranged to install and train them.During the service period, if the equipment fails, we will arrange technicians for video technical guidance.For the consumables needed by the equipment, we will remind the customer to prepare the goods properly to keep the equipment in normal use.We will regularly communicate with customers, do return visits, ask about the use of equipment.
Packaging and Shipping
|
Packaging Details |
1. Plastic stretch film coating; 2. Steel pallet and plywood case package; 3. LCL or FCL by sea transportation. |
FAQ
Shandong Care Machinery Technology Co., Ltd. is one of the most professional glass washing machine manufacturers and suppliers in China, featured by quality products and good price. Please rest assured to buy customized glass washing machine from our factory.
