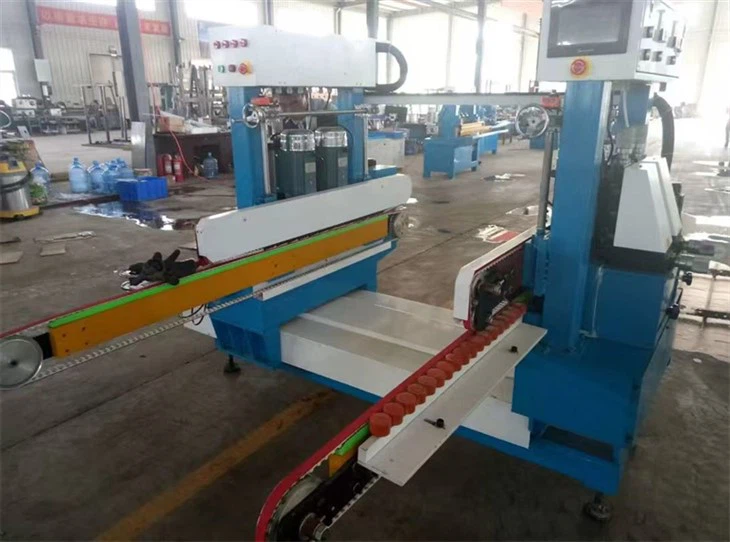

Automatic Straight Line Glass Edging Machine
Glass pencil edging machine can complete the round edge grinding processing of two sides of flat glass at one time. If two machines are connected, it can complete the processing of four sides at one time, with high work efficiency.
Features
Shandong Care Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of automatic straight line glass edging machine in China. If you're going to buy customized automatic straight line glass edging machine, welcome to get more information from our factory. Quality products and reasonable price are available.
The automatic straight-line glass edging machine is a professional industrial device designed for edging, polishing, and chamfering flat glass. It utilizes advanced automation technology and precise mechanical structures to achieve fully automated operations from glass loading, edging, and polishing to unloading-ensuring consistent edge quality while significantly improving production efficiency. It is widely used in the processing of architectural glass, furniture glass, automotive glass, and decorative glass, making it an indispensable core piece of equipment for glass manufacturing and processing factories.
Technical Parameters
|
Parameter |
Specification |
|
Processing Speed |
1-15 m/min (adjustable) |
|
Compatible Glass Thickness |
3-30 mm |
|
Spindle Quantity |
5/7/9 spindles (optional) |
|
Edging Precision |
±0.1 mm |
|
Maximum Glass Width |
2000-4000 mm (customizable) |
|
Spindle Power |
1.5-3.0 kW/spindle |
|

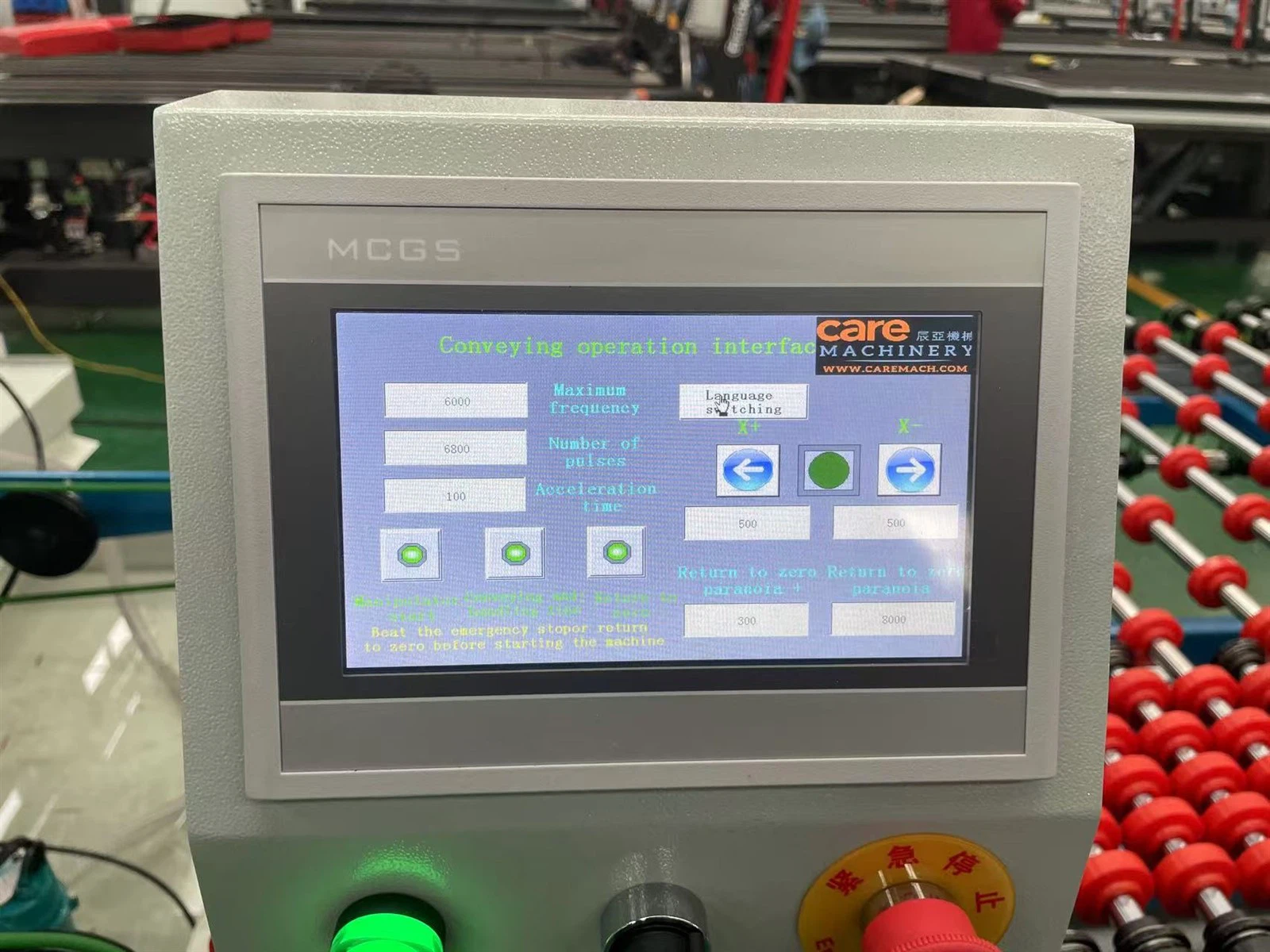

Control System |
PLC + Touch Screen |
|
Power Supply |
380V/50Hz (customizable for 220V/60Hz) |
|
Machine Dimension (L×W×H) |
3800×1800×2200 mm (varies by model) |
|
Net Weight |
1800-3500 kg (varies by model) |
|
Certification |
CE, ISO9001 |
Details
Motor drives grinding wheel
for working.
Why Choose Us
10+ years of experience in glass processing equipment manufacturing, with 5000+ installations worldwide.
Customizable machine specifications according to customer's production line and processing requirements.
Factory direct supply with competitive prices, eliminating intermediate agents.
Compliance with international standards (CE, ISO) for smooth import and customs clearance.
