Glass Edge Beveling Machine

Shandong Care Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of glass edge beveling machine in China. If you're going to buy customized glass edge beveling machine, welcome to get more information from our factory. Quality products and reasonable price are available.

Glass edge beveling machine using PLC to control glass processing thickness, angle and height.

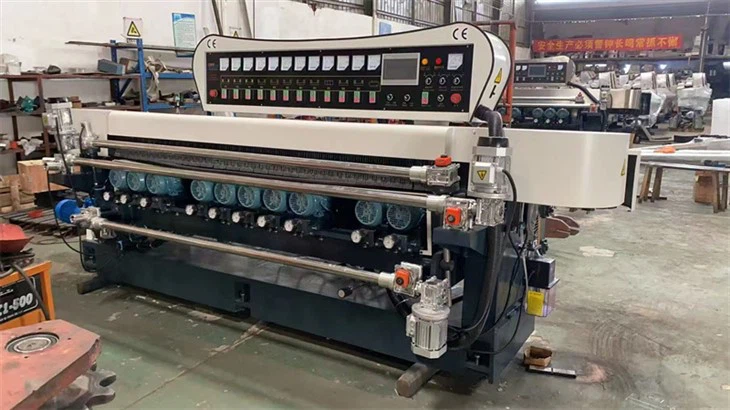

Glass edge beveling machine is used to process bevel edges of flat glass at different angles, with bevel angles of 2°-30°. Whether it is a regular bevel or a special customized bevel, it can be processed.

The beveling machine integrates the three key processes of rough grinding, fine grinding and polishing to achieve efficient completion in one go. Improved the processing quality of glass bevel, bringing its surface smoothness, flatness and gloss to a higher standard.

The front pressure plate is equipped with an intelligent lifting system, which can be automatically adjusted according to the size of the glass, and the processing thickness is 3-19mm.

The pressing plate is made of thickened steel plate, which enhances the structural strength and stability of the transmission part. During the glass transfer process, it can effectively reduce vibration, make the glass pass through each processing station smoothly, and ensure the processing accuracy and consistency of the glass bevel.

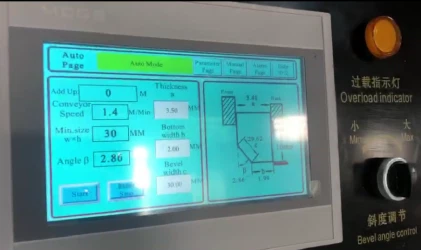

Using PLC control system and touch screen operation interface, after inputting parameters such as transmission speed, bevel angle, bevel width, etc., the equipment can complete bevel processing.

The processing speed of Glass beveling machine can be up to 5m/min, and the minimum processing glass size is 30x30mm.

The machine voltage can be customized according to the actual market voltage at that time.



PLC/ Manual control system optional, make process more Faster, accurate, efficiency and easier.



Foundation, beams & bracket are heavy duty cast steel,

annealing treatment.



Stable, will never deformation and Ensure high process precision.

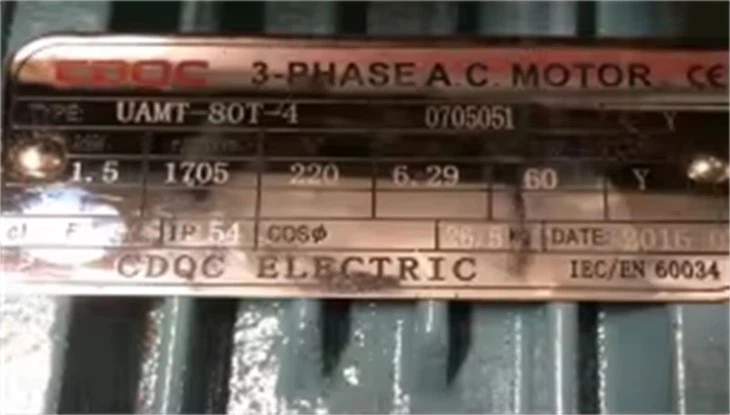

All the spindles are CDQC motors. Best quality provide.

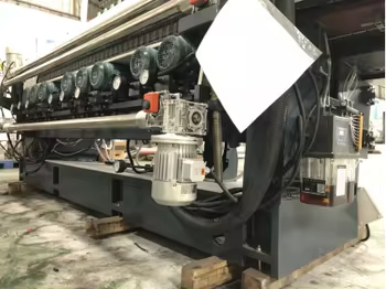

High quality stepless speed change motor. Working speed can adjust 0.5-5m/min

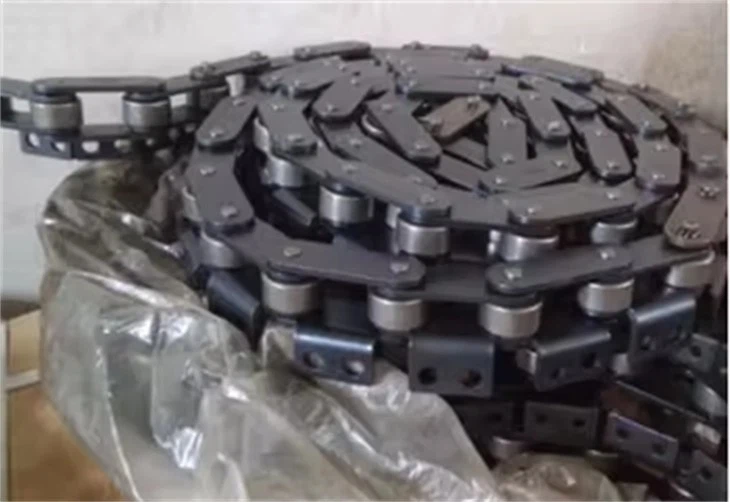

Big ball rolling press plates chains, strong and stable.

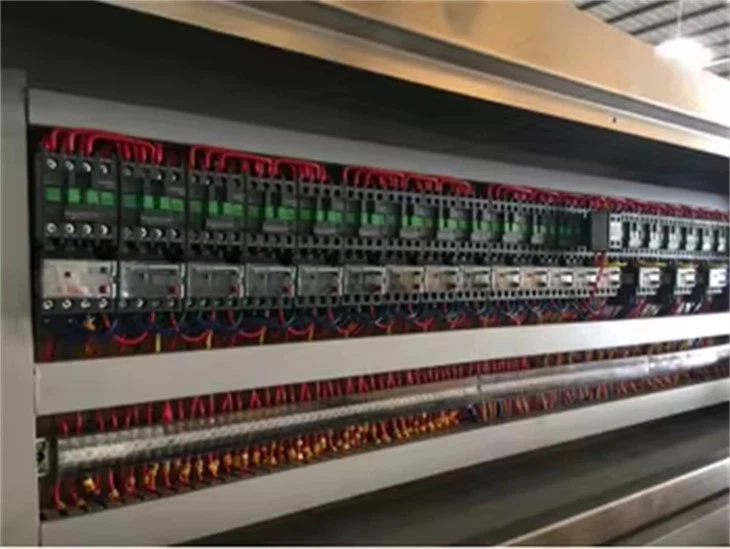

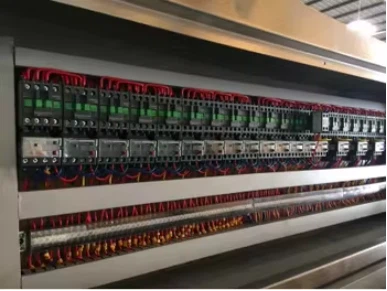

Schneider electrical components .High quality, Neat wiring layout, ease of maintenance and management.
