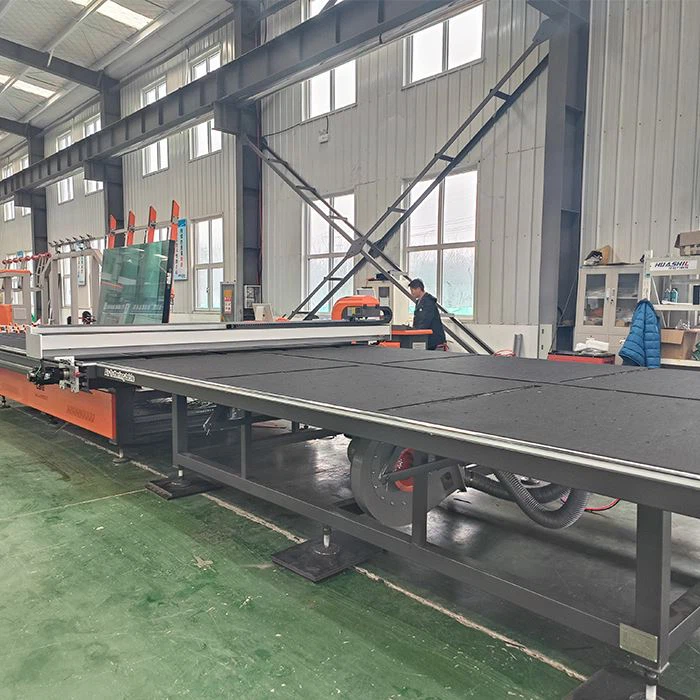

Large-Size CNC Glass Cutting Line

Shandong Care Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of large-size cnc glass cutting line in China. If you're going to buy customized large-size cnc glass cutting line, welcome to get more information from our factory. Quality products and reasonable price are available.

The Large-Size CNC Glass Cutting Line achieves this through technological integration and automated control, addressing the shortcomings of traditional manual cutting such as low efficiency, poor accuracy, high cost, and high risks. At the same time, it meets the modern manufacturing industry's demands for large-scale production, customization, and high quality.

1.The cutting accuracy is extremely high, and the product consistency is strong.
This is one of the core advantages of the production line and also the key difference from manual cutting:
Controllable precision: Relying on the CNC (Computer Numerical Control) system + servo motor drive, the cutting positioning accuracy can reach ±0.15mm, and the diagonal error is ≤±0.25mm/m². It can precisely meet the complex cutting requirements such as straight lines, curves, and irregular shapes (such as the arc surface of automotive glass, the splicing size of photovoltaic glass), avoiding the "hand-shake error" caused by manual operation.
Consistent without deviation: As long as the preset program remains unchanged, the cutting size, angle, and flatness of each piece of glass are completely consistent. Especially suitable for "batch standardization" scenarios such as building curtain walls and home appliance panels, reducing assembly rework or scrap caused by size deviations.

Drawing paper

Loading arms can moving on

the rail to catch the glass.

Industrial

computer operation with Italy

Optima system

2. Production efficiency doubles, significantly reducing labor costs
The production line completely breaks away from the efficiency bottleneck of manual operation through "automated process connection":
Continuous operation: From "automatic feeding platform suction → cutting platform positioning cutting → air float platform separating", there is no need for manual intervention throughout the process. The cutting speed of a single line can reach 160-200m/min (some high-end lines are higher), and 1 hour can cut hundreds of standard-sized glass pieces, which is 5-8 times higher than manual cutting efficiency.
No intermittent connection: The feeding, cutting, and separation processes are seamlessly connected, without the need for manual handling and waiting. Especially suitable for large-sized glass (such as 4m×3m building glass) or thick glass (25mm or above) processing - manual handling of large glass is not only time-consuming but also prone to glass, while the production line realizes "non-contact transportation" through mechanical arms and air float devices, improving efficiency and safety simultaneously.





3. Reduce reliance on human labor, lower overall costs
In the long run, the production line can significantly reduce direct and indirect costs related to human labor：
Reduce the number of workers： Traditional manual cutting requires "feeding workers + cutting workers + separating workers" to cooperate, while a fully automated production line only needs 1-2 people to monitor the equipment operation (such as replenishing materials, troubleshooting abnormalities), significantly reducing labor costs.
Reduce scrap rate： Manual cutting is prone to glass cracking and damage due to "line marking deviation, uneven force" caused by human operation. The scrap rate is usually 5%-8%; the production line due to controllable precision, can reduce the scrap rate to below 1%, reducing the waste of glass raw materials (especially high-end glass such as photovoltaic ultra-clear glass, automotive laminated glass, which have higher costs).
Reduce human risks： During glass cutting, human operation is prone to being scratched by the glass edge or causing work-related injuries due to handling heavy glass; the production line is fully mechanized throughout, fundamentally avoiding such safety hazards, reducing the enterprise's work injury compensation and safety management costs.
