1.1 Automatic Glass Loading Machine

The automatic glass loading machine is the first stage of the High Precision CNC Glass Cutting Line. It is typically equipped with a mechanical turning mechanism and a vacuum suction cup system. For example, the machine can lift glass sheets from a storage rack, rotate them to a horizontal position, and then transport them onto the cutting table. The loading depth can often reach up to 700mm, enabling it to handle different glass - storage configurations. Some models feature dual - station or multi - station loading capabilities, which significantly increase the throughput. The frame of the loading machine is made of high - strength materials to ensure stability during the lifting and moving processes.

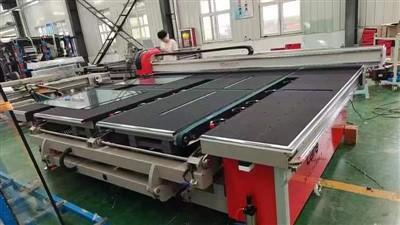

1.2 CNC Glass Cutting Machine

The CNC glass cutting machine lies at the heart of the line. It consists of a sturdy chassis, a precision - engineered beam system, and a work table system. The cutting head, which is a crucial component, can rotate 360 degrees. This allows for the cutting of complex and intricate glass shapes, from simple straight lines to highly detailed curves. The machine is powered by high - performance servo motors, which control the movement of the cutting head in the X, Y, and Z axes. High - quality linear guides, such as those imported from Japan or Switzerland, ensure smooth and accurate movement, resulting in cutting accuracies as high as ±0.15mm for straight lines and ±0.20mm for glass abnormity. The cutting bridge is often made of aerospace - grade Al - Mg alloy, which is both lightweight and extremely rigid, allowing for high - speed cutting without sacrificing precision.


1.3 Glass Breaking Machine

The glass breaking machine, usually an air - float type, is the final stage of the line. It is designed to separate the cut glass pieces cleanly. The machine's tabletop is equipped with an air - flotation mechanism that gently lifts the cut glass, reducing friction and minimizing the risk of damage during the breaking process. The sheet - breaking mechanism is carefully calibrated to apply the right amount of force, ensuring that the glass breaks along the cut lines. The frame of the breaking machine is also constructed from durable materials to withstand the repeated stress of the breaking operation.

Glass Loading: The automatic glass loading machine starts the process. Once the operator positions the glass sheets in the designated area, the machine's sensors detect the presence of the glass. The boom, driven by a turning mechanism, rotates upward by approximately 95°. The whole machine then moves forward until the sensing device on the jib touches the glass. At this point, the vacuum system activates, and the suction cups on the glass lift it upward by about 80mm. The walking motor then moves the machine backward while the boom lowers. When the boom is in place, the suction cup under the glass starts to blow air, and the glass is gently placed onto the conveyor wheel, which then transports it to the cutting table.


Cutting Process: In the CNC glass cutting machine, the control system reads the pre - programmed cutting patterns, which can be in various file formats such as DXF (compatible with AutoCAD) or the standard G - codes from nesting software like Optima. The servo motors drive the cutting head along the X and Y axes according to the programmed path. The Z - axis motor controls the depth of the cut, and an analog control system adjusts the cutting pressure based on the thickness of the glass. For example, if the glass is 3 - 19mm thick, the machine automatically adjusts the pressure to ensure a clean and accurate cut. The cutting head can move at speeds of up to 180m/min, depending on the model, enabling high - speed production.


Glass Breaking: After the glass is cut, it is transported to the glass breaking machine via the conveyor belt on the cutting table. The air - float mechanism in the breaking machine creates a cushion of air, which lifts the cut glass slightly off the tabletop. The sheet - breaking mechanism then applies a carefully calculated force, causing the glass to break along the cut lines. The broken glass pieces can then be easily removed for further processing or packaging.
