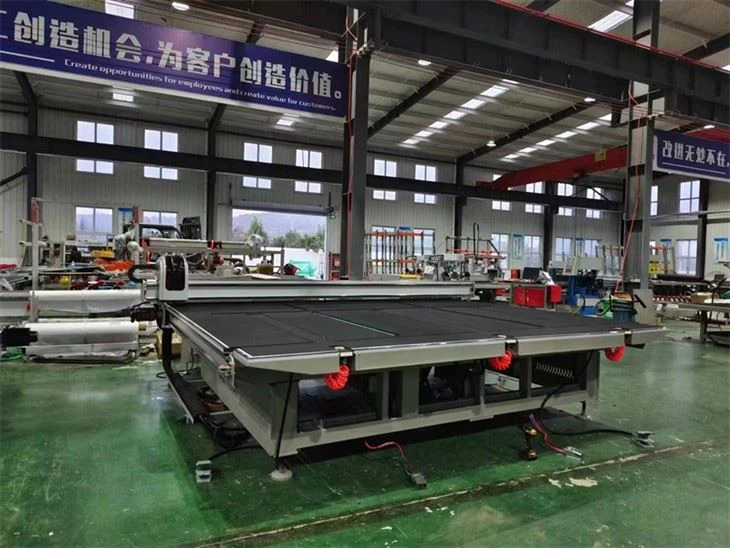

CNC Window Glass Cutting Machine
Window glass cutting machine adopts professional imported glass cutter wheels to cut and Italy Optima optimization function，which can achieve mass production and shape glass cutting.
Features
Shandong Care Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of cnc window glass cutting machine in China. If you're going to buy customized cnc window glass cutting machine, welcome to get more information from our factory. Quality products and reasonable price are available.
This equipment is a fully automatic CNC glass cutting system that integrates automatic film loading, air-floating positioning, intelligent edge detection, high-speed cutting, automatic oil injection, film breaking / film removal / label application. It is specially designed for large-scale production of window and door glass, enabling precise cutting of straight lines / irregular shapes, significantly improving efficiency, reducing waste, and minimizing the need for manual labor.
Parameter
|
Machine parameters |
Dimensions |
Length * width * height：4200mm*3100mm*1400mm |
|
Weight |
2200kg |
|
|
Table height |
880±30mm(Adjustable feet) |
|
|
Power requirements |
380V,50Hz |
|
|
Installed power |
7.5kW(Use power3KW) |
|
|
Compressed air |
0.6Mpa |
|
|
Processing parameters |
Cut glass size |
MAX.3660*2440mm |
|
Cut glass thickness |
3~19mm |
|
|
Head beam speed |
X axis 0 ～ 200m / min (can be set) |
|
|
Head speed |
Y axis 0 ～ 200m / min (can be set) |
|
|
Cutting acceleration |
≥8m/s² |
|
|
Cutting knife seat |
Cutting head can rotate 360 degrees (precise cutting of straight lines and special shapes) |
|
|
Cutting accuracy |
≤±0.25mm/m(Based on the size of the cutting line before the glass breaking) |
core advantage
Applicable: Building doors and windows, curtain walls, insulating glass, Low-E coated glass, home decoration / engineering glass
Advantages: Fully automated, high precision, high speed, high utilization rate, stable and durable
Configuration: Servo direct drive + precise rack + air floating platform + CNC/PLC dual control + optimized software
Details

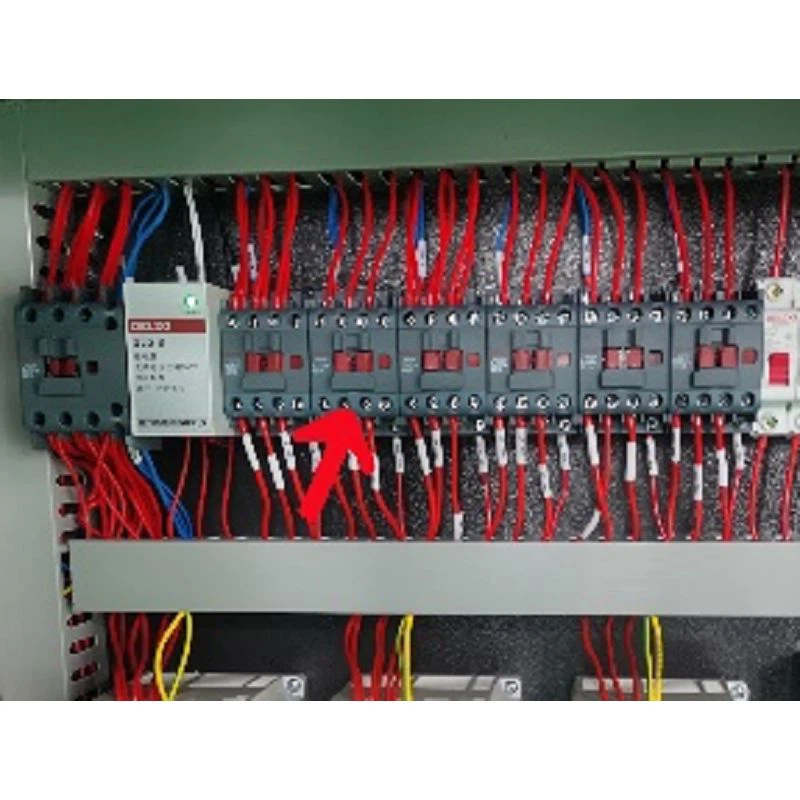

Schneider electrics for
security and safety.

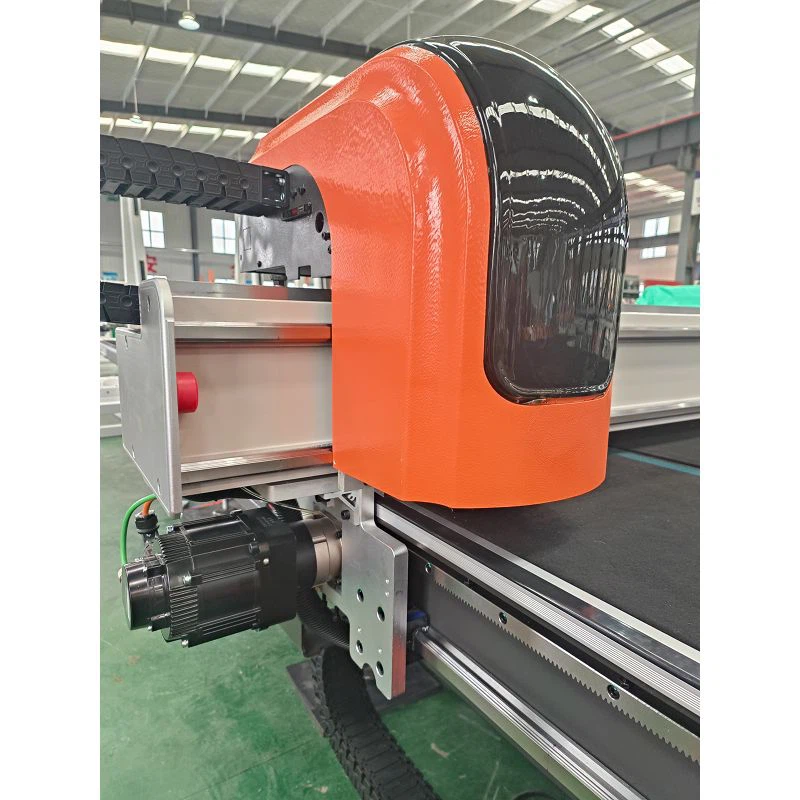

Cutting head
automatic positioning and cutting

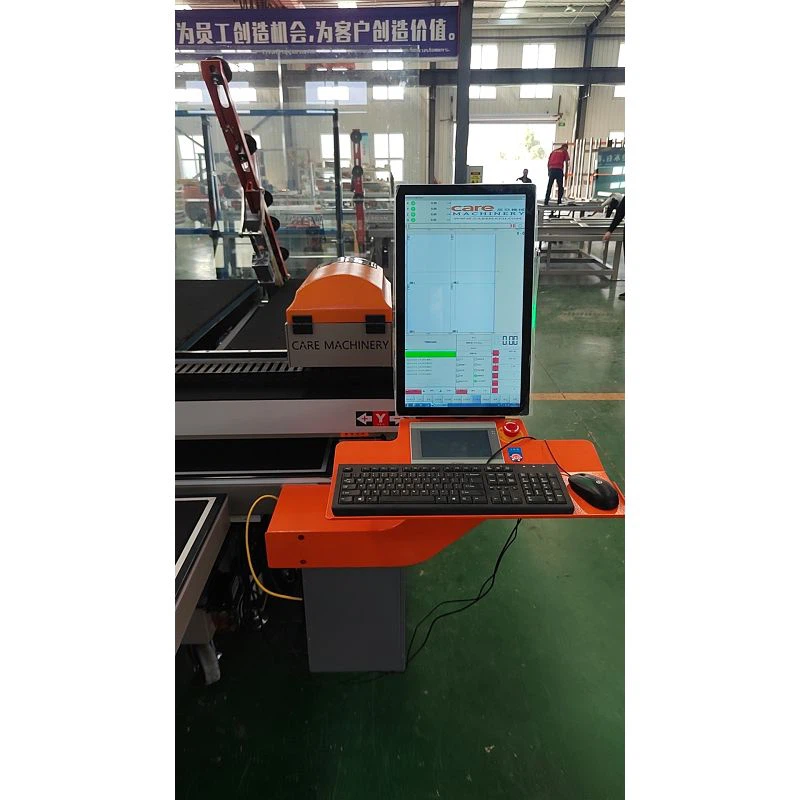

Italy optima
optimization system for intelligent cutting
