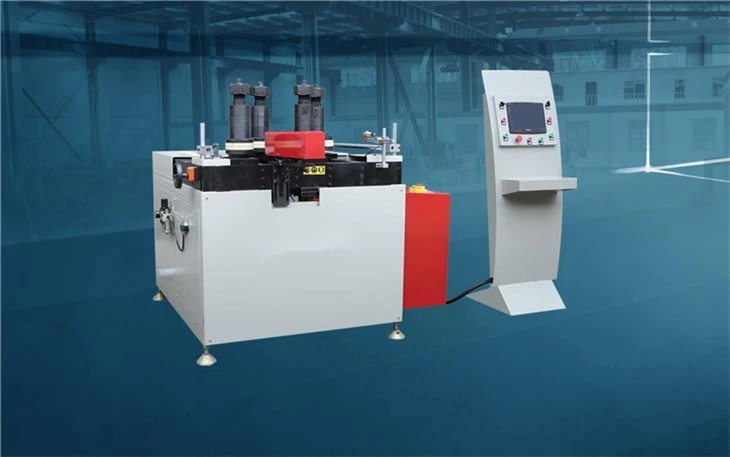

Aluminum Window Bending Machine
Aluminum window bending machine dopts the self-developed servo hydraulic system and use the imported oil pump to make the positioning accuracy of the working axis below 0.02mm under the working state of the equipment under th pressure of 15 tons.
Features
Shandong Care Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of aluminum window bending machine in China. If you're going to buy customized aluminum window bending machine, welcome to get more information from our factory. Quality products and reasonable price are available.
Aluminum window bending machine dopts the self-developed servo hydraulic system and use the imported oil pump to make the positioning accuracy of the working axis below 0.02mm under the working state of the equipment under th pressure of 15 tons.
The four rollers are independently controllable, stepless speed regulation, automatic speed matching, to make up for the difference in line speed [difference between inner diameter and outer diameter] during the radius forming of the workpiece, and the surface of the workpiece will not be scratched.
Accurate radius (R) control and easy continuous processing of multiple arcs and complex graphics;
Aluminum window bending machine with numerical control system, which completely solves the smoothness and symmetry of the transition of different curvatures of the workpiece;
Humanized control system, flexible, simple, easy to understand at a glance, easy to use; completely solve the dependence on skilled workers;
Exquisite mold design technology can perfectly solve product quality problems such as wrinkling, scratches, distortion, and sinking, and meet your high-quality requirements for products
Unique core algorithm, rich rolling processing parameters, simple operation, concise and practical
Automatic blanking calculation to reduce your material waste
Multiple front and back arcs can be processed at one time (S bend, wave type)
Parameter
|
Axis distance |
340-450mm |
|
Shaft diameter |
65mm |
|
Axis length |
260mm |
|
X axis maximum torque |
2450N.m |
|
Y-axis thrust |
20T |
|
Y-axis repeat positioning accuracy |
<=0.02mm |
|
X-axis positioning accuracy |
<0.4mm |
|
Y axis feed stroke |
0-120mm |
|
Minimum machining radius |
150mm One-time bending (related to the actual size of the material) |
|
Clipping profile range(H*W) |
180*100mm |
|
Shaft speed |
1-14r/min |
|
Mold diameter |
200mm |
|
Dimension |
L*W*H=1450*1500*1500 |
|
Power |
6.5KW |
|
Voltage |
AC380V3P |
|
Weight |
1500kg |
Classification
Hydraulic Aluminum Profile Bending Machine: Stable performance, cost-effective, suitable for small and medium batch production.
CNC Automatic Bending Machine: Digital control, high precision, high efficiency, suitable for mass and high-precision bending production.
Vertical/Horizontal Bending Machine: Different installation methods to meet different site and process requirements.
